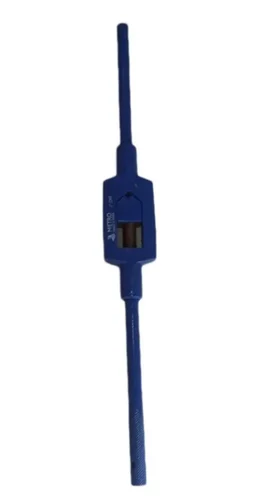

Metro Round Die Handle

TOTEM, a brand under Forbes Precision Tools and Machine Parts Limited, specializes in precision engineering tools, including High-Speed Steel (HSS) dies. These dies are essential for creating external threads on various materials, ensuring accurate and reliable threading in industrial applications.

Key Features of TOTEM HSS Dies:

• Material Composition: Crafted from high-quality HSS, these dies offer superior hardness and wear resistance, making them suitable for threading a wide range of materials, including steel, aluminum, and brass.

• Design Variants:

  • Round and Hexagonal Dies: Available in both round and hexagonal shapes to accommodate different threading requirements and tool compatibilities.
  • Split Dies: Some models feature a split design, allowing for slight adjustments to achieve precise threading tolerances.

• Thread Specifications:

  • Metric and Imperial Threads: TOTEM provides dies for both metric and imperial thread systems, catering to diverse industrial standards.
  • Various Sizes: The dies come in a range of sizes to suit different threading needs. For instance, the TOTEM HSS-M2 Ground Thread Round Die is available in sizes like 10x1.50 mm.
    Moglix

Usage Guidelines:

• Chamfering: Before threading, it's recommended to chamfer the end of the workpiece at a 45-degree angle. This practice reduces sudden loading on the die's leading edges and facilitates smoother threading.

  Ashertools



• Alignment: Ensure that the die is aligned squarely with the workpiece to prevent uneven threading and potential damage to the die.

• Lubrication: Applying appropriate lubricants during the threading process minimizes friction and prolongs the die's lifespan.

• Adjustments: For adjustable split dies, make equal adjustments to the screws (e.g., 0.15 mm) to maintain balance and prevent undue pressure on one side, which could lead to breakage.

  Ashertools



Applications:

TOTEM HSS dies are widely used in industries such as manufacturing, automotive, and maintenance for tasks that require precise external threading. Their durability and precision make them suitable for both high-volume production and specialized threading operations.

Availability:

TOTEM HSS dies are available through various industrial suppliers and online platforms. For example, the TOTEM 2 x 5/8" Metric HSS Circular Split Die can be found on Industry Buying.

For a comprehensive selection and detailed specifications, visit TOTEM's official website or consult authorized distributors.

A die wrench, also known as a die handle or die stock, is a manual tool designed to hold and turn threading dies for cutting external threads on rods or bolts. The "METRO" Ratchet Die Set is a specific product that includes a ratcheting die handle and threading dies of various sizes.

Key Features of the METRO Ratchet Die Set:

• Components: The set comprises a ratcheting die handle and three British Standard Pipe (BSP) threading dies in sizes 1/2", 3/4", and 1".

  Flipkart



• Ratcheting Mechanism: The die handle features a ratcheting mechanism, allowing for efficient threading without the need to reposition the tool after each turn.

• Material: Constructed from durable iron, ensuring longevity and reliability during threading operations.

• Handle Length: The die handle measures approximately 35 cm, providing adequate leverage for threading tasks.

Applications:

This die set is suitable for cutting external threads on pipes and rods, commonly used in plumbing, automotive repair, and general maintenance tasks. The included BSP dies make it particularly useful for threading pipes that conform to British standards.

Usage Guidelines:

1. Preparation: Ensure the workpiece is securely clamped and the end to be threaded is chamfered to facilitate die engagement.

2. Die Installation: Insert the appropriate die into the ratcheting die handle, aligning it correctly.

3. Thread Cutting: Position the die at the end of the workpiece and apply consistent pressure while turning the handle to cut the thread. The ratcheting feature allows for continuous motion without repositioning.

4. Lubrication: Apply suitable cutting oil during threading to reduce friction and extend tool life.
