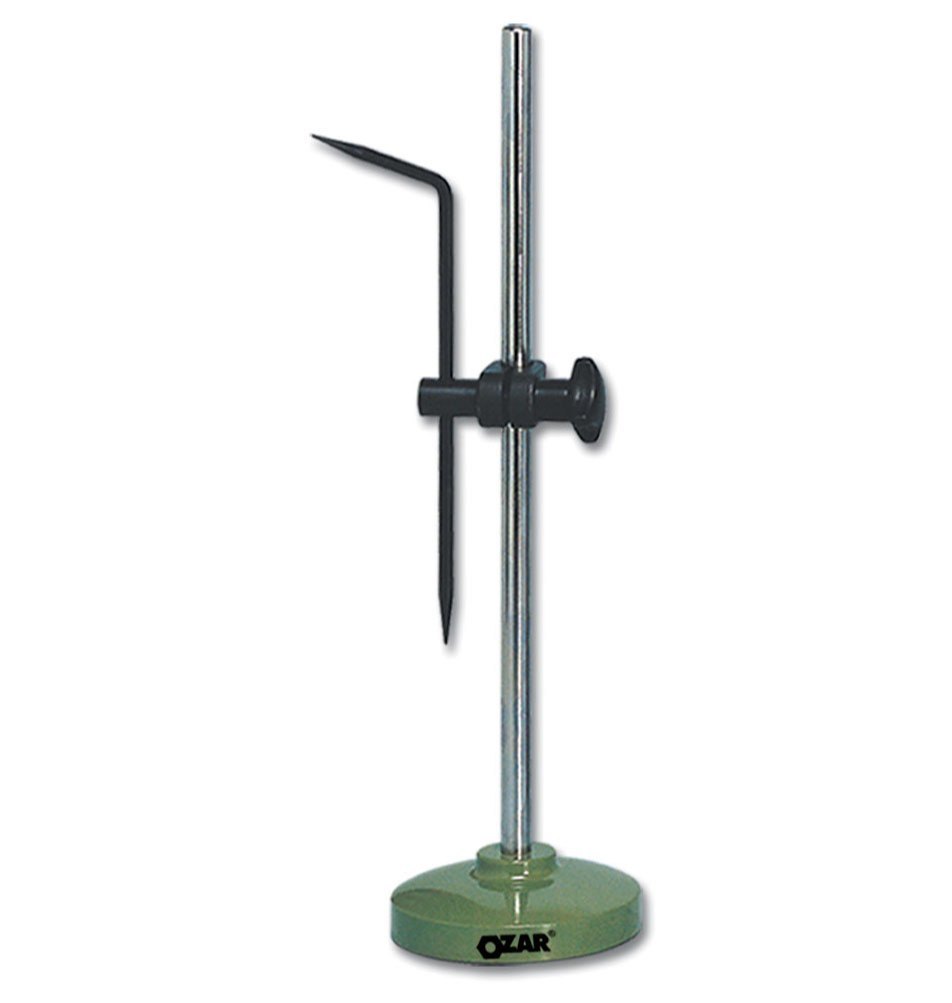

Surface Gauges Fixed & Adjustable

A surface gauge, also known as a scribing block, is a precision tool used in machining, metalworking, and quality control to measure and mark vertical distances from a reference surface, such as a machine table or surface plate. It assists in scribing lines, transferring measurements, and inspecting workpieces for accuracy.

Components and Features:

• Base: The base is typically made of hardened steel or cast iron, providing stability during use. Some models feature a magnetic base that can be turned on or off to secure the gauge to metal surfaces, preventing movement during measurements.

• Spindle (Vertical Column): A vertical rod mounted on the base, often equipped with fine adjustment mechanisms to precisely set the desired height. The spindle may have a knurled thumb screw for easy adjustments

• Scriber: Attached to the spindle via an adjustable arm or universal clamp, the scriber is a sharp, hardened steel point used to mark lines on the workpiece. Its position can be adjusted vertically and, in some models, horizontally and at various angles.

Types:

• Fixed Surface Gauges: These have a non-adjustable base and are used for standard scribing and measurement tasks.

• Adjustable Surface Gauges: Equipped with features like magnetic bases, fine adjustment screws, and universal clamps, these gauges offer enhanced flexibility for complex measurements and markings.

Applications:

• Scribing Lines: Used to draw parallel lines on workpieces, essential for layout work in machining and metalworking.

• Transferring Measurements: Helps in transferring precise measurements from one part to another, ensuring consistency across components.

• Inspection: Assists in checking the flatness, straightness, and alignment of surfaces and components.

Usage:

1. Setup: Place the base of the surface gauge on a stable, flat reference surface.

2. Adjustment: Set the scriber to the desired height or angle using the adjustable spindle and clamps.

3. Scribing: Move the gauge across the workpiece to scribe lines or mark points as needed.

Surface gauges are invaluable in ensuring precision and accuracy in various industrial applications, aiding in the production of components that meet strict dimensional and quality standards.
