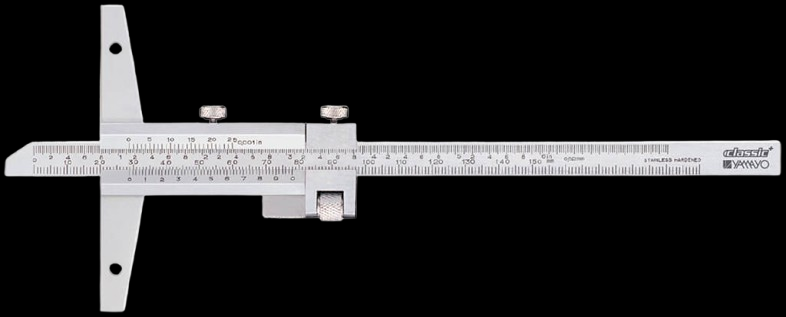

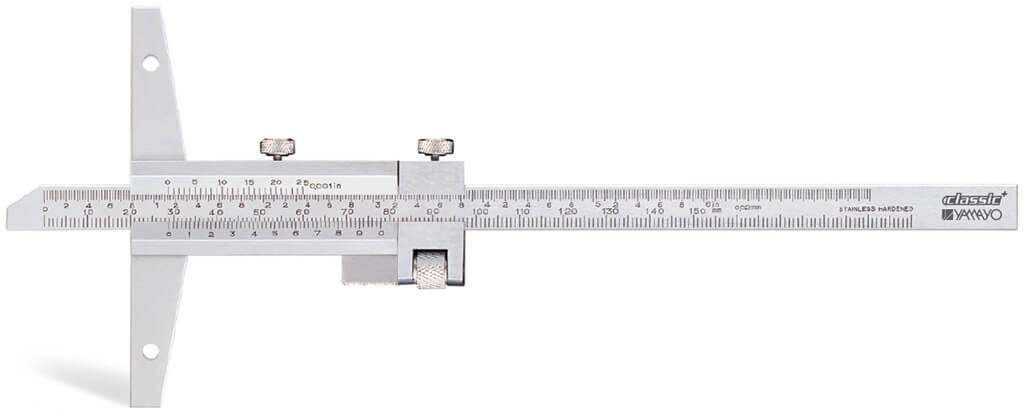

YAMAYO Vernier Depth Calipers

Features

• Vernier and main scale are with Satin Chrome finish for glare free reading.
• Provided with a fine adjustment carriage to feed the slider finely.
• Base and measuring faces are hardened and micro-lapped.

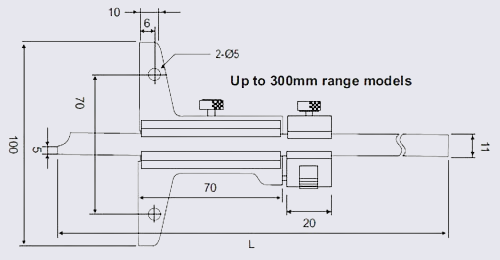

• SPECIFICATIONS & DIMENSIONS
  (mm)



  Order No.	Range	Graduation	Accuracy (±)	L
  185-150	150mm/6”	0.02mm/0.001”	0.03mm	250
  185-200	200mm/8”	0.02mm/0.001”	0.03mm	300
  185-300	300mm/12”	0.02mm/0.001”	0.04mm	400
  185-600	600mm/24”	0.02mm/0.001”	0.05mm	720
  185-1000	1000mm/40”	0.02mm/0.001”	0.06mm	1125
